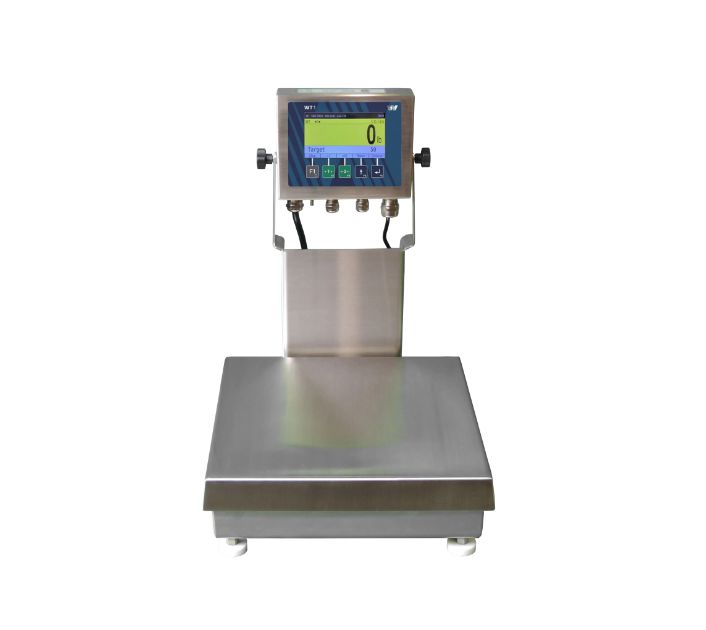

Name: ISO-Certified Automated Checkweighing for Quality-Critical Manufacturing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Automated Checkweighing for Quality-Critical Manufacturing
Availability: InStock

Aperçu Produits Automatic Checkweigher

ISO-Certified Automated Checkweighing for Quality-Critical Manufacturing

Détails sur le produit:

Place of Origin:	CHINA
Model Number:	Automated Checkweighing for Quality-Critical Manufacturing

Conditions de paiement et expédition:

Minimum Order Quantity:	1 set
Prix:	Négociable
Packaging Details:	Caron box
Delivery Time:	10-30days
Supply Ability:	2000 set per month

Contact

Description de produit détaillée

Product:	ISO-Certified Automated Checkweighing for Quality-Critical Manufacturing	Accuracy Class:	Y(b) (0.1g) to Y(a) (0.001g)
Minimum Weighable Value:	20-100×readability	Measurement Uncertainty:	≤0.1% of nominal weight (k=2)
Max Throughput:	50-800 items/minute	Weighing Cycle Time:	50-500ms
Conveyor Width:	200-1200mm	Max Product Weight:	0.1g-50kg
Material Contact Surfaces:	316L SS, FDA-grade plastics	Operating Temperature:	-20°C to +50°C
Humidity Range:	10-95% RH (non-condensing)	Audit Trail Retention:	10+ years
Data Sampling Rate:	1000Hz	Rejection Accuracy:	±1mm positional accuracy
Rejection Speed:	<10ms response time	Electrical Safety:	CE, UL, CSA
EMC Compliance:	EN 61326-1	Industry Protocols:	PROFINET, EtherCAT, OPC UA
ERP/MES Integration:	SAP, Oracle, Rockwell
Mettre en évidence:	automated checkweighing system , manufacturing load cell scale , Mettler Toledo checkweighing equipment

ISO-Certified Automated Checkweighing for Quality-Critical Manufacturing

ISO-certified automated checkweighers represent the gold standard in production line weight verification, combining metrological precision with quality management system compliance. These systems are specifically engineered for industries where measurement accuracy directly impacts product safety, regulatory compliance, and brand reputation.

System Architecture & Compliance Features

Hygienic Design Components

FDA/USDA-compliant 316L stainless steel construction
IP69K-rated enclosures for washdown environments
EHEDG-certified quick-release mechanisms

Advanced Quality Control Modules

Real-time SPC (Statistical Process Control)
Automated calibration triggers based on ISO 9001 requirements
Digital audit trails compliant with FDA 21 CFR Part 11

Operational Benefits

Quality Assurance

Reduces giveaway by 0.5-3% through precise filling control
Achieves < 50ppm defect rates in high-speed production

Regulatory Protection

Prevents $20k-$500k/hour recall costs
Maintains 100% batch traceability

Process Efficiency

30-70% reduction in quality control labor
24/7 operation with <0.5% downtime

Parameter	Specification Range
Accuracy Class	Y(b) (0.1g) to Y(a) (0.001g)
Minimum Weighable Value	20-100×readability
Measurement Uncertainty	≤0.1% of nominal weight (k=2)
Max Throughput	50-800 items/minute
Weighing Cycle Time	50-500ms
Conveyor Width	200-1200mm
Max Product Weight	0.1g-50kg
Material Contact Surfaces	316L SS, FDA-grade plastics
Operating Temperature	-20°C to +50°C
