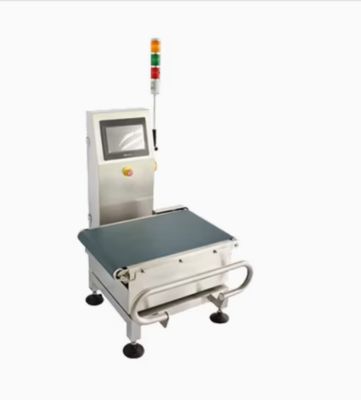

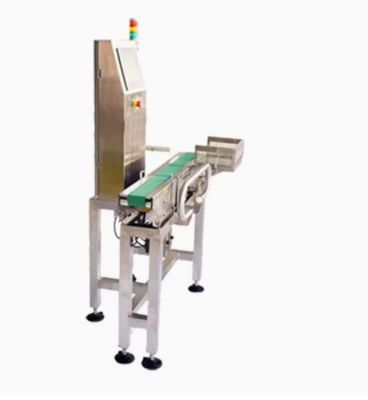

Name: Checkweigher Combinations with Vision Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweigher Combinations with Vision Systems
Availability: InStock

Aperçu Produits Trieuse pondérale automatique

Checkweigher Combinations with Vision Systems

Détails sur le produit:

Lieu d'origine:	Chine
Model Number:	Checkweigher Combinations with Vision Systems

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	Négociable
Packaging Details:	Caron box
Délai de livraison:	10-30 jours
Capacité d'approvisionnement:	2000 set par mois

Contact

Description de produit détaillée

Produit:	Vérifiez les combinaisons plus	Caméras:	2-8x CMOS industriels (5-20MP)
Optique:	Lentilles télécentriques (grossissement 0,1-0,5x)	éclairage:	Tableaux LED à angle multi-angles (RVB / W / UV / IR)
Fréquence d'images:	Jusqu'à 300 images par seconde (dépendants du produit)	Résolution:	0,001g
Mesure dimensionnelle:	± 0,05 mm	Vérification des couleurs:	150 ppm
Défauts de surface:	Défauts de 0,1 mm	Vérification de l'étiquette:	300 ppm
Présence / absence:	500 ppm	Capacité:	0,1 g-25 kg
Précision:	± 0,05% FS	Vitesse:	Jusqu'à 600 ppm
Mettre en évidence:	Mettler Toledo checkweigher with X-ray , checkweigher inspection combination load cell , X-ray inspection checkweigher

Checkweigher Combinations with Vision Systems

Key Specifications

Attribute	Value
Cameras	2-8x industrial CMOS (5-20MP)
Optics	Telecentric lenses (0.1-0.5X magnification)
Lighting	Multi-angle LED arrays (RGB/W/UV/IR)
Frame Rate	Up to 300fps (product-dependent)
Resolution	0.001g
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
Capacity	0.1g-25kg
Accuracy	±0.05% FS
Speed	Up to 600ppm

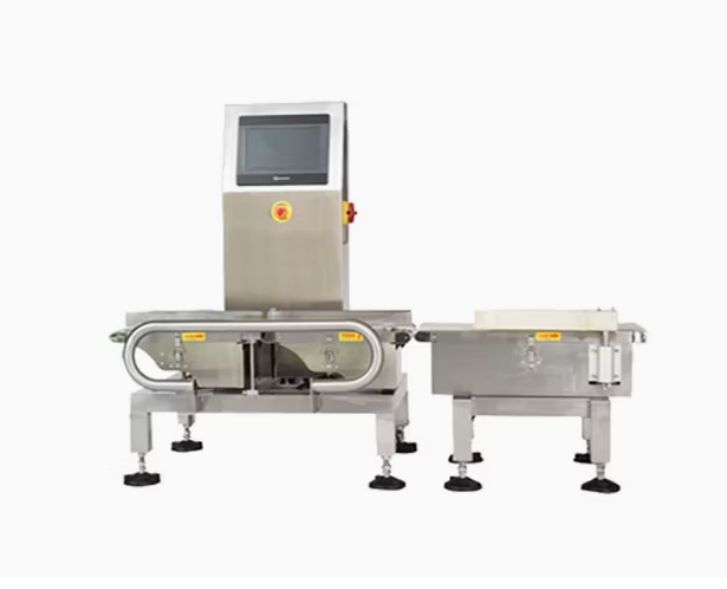

System Overview

This advanced system combines high-precision dynamic weighing with multi-camera vision inspection for comprehensive quality control.

Machine Architecture

Modular Design: Integrated weighing and vision inspection system
Structural Components:
- Aluminum/stainless steel hybrid frame (Grade 304)
- Compact footprint: 1800(L) × 800(W) × 1400(H) mm
- IP65-rated enclosure (IP69K optional)
- Transparent safety guards with interlock switches

Material Flow Configuration

Infeed Section:
- Servo-driven belt conveyor (5-80 m/min)
- Product singulation system
- Barcode/RFID reader integration point
Inspection Zone:
- High-resolution vision tunnel
- Precision load cell weighing platform
- Multi-spectrum lighting array
Outfeed Section:
- Smart rejection system with 4-way sorting
- Verification sensors for quality tracking

Vision System Specifications

Parameter	Specification
Resolution	0.05mm/pixel at 50m/min
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
