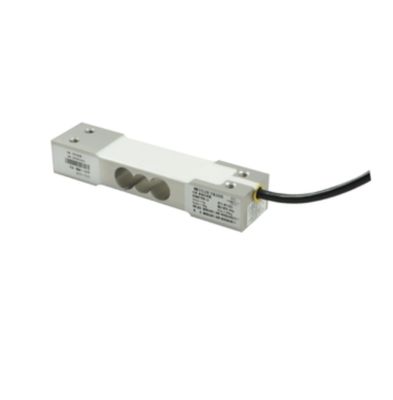

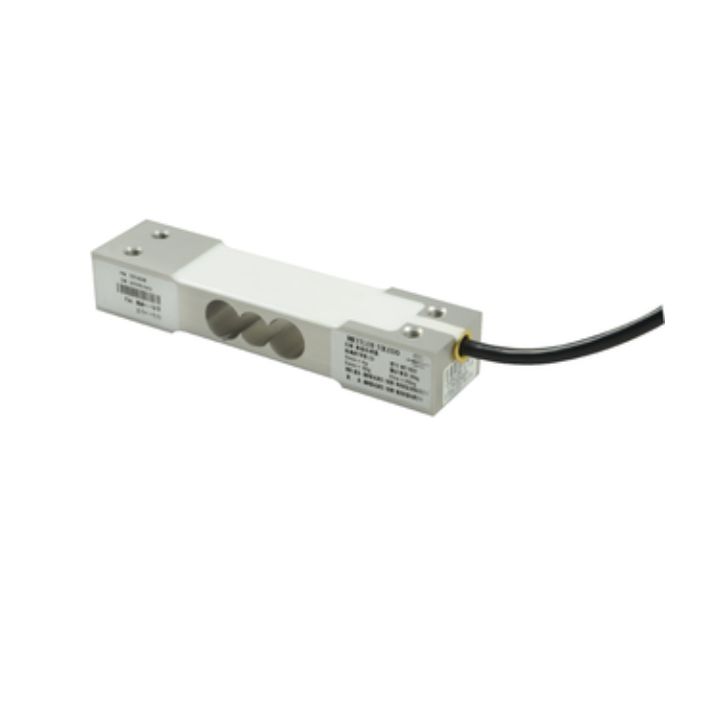

Name: Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Cellule de charge MT1022-30kg 3m
Availability: InStock

Aperçu Produits

Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	Mettler Toledo
Numéro de modèle:	Cellule de charge MT1022-30kg 3m

Conditions de paiement et expédition:

Quantité de commande min:	1 ensemble
Prix:	Négociable
Détails d'emballage:	Boîte à carottes
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 ensembles par mois

Contact

Description de produit détaillée

Produit:	Cellule de pesée Mettler Toledo	Capacité maximale:	30 kg (66 lb)
Matériel:	d'une épaisseur n'excédant	Métrologie:	NTEP III 5,000d OIML C3
Précision:	Standard	Classement de protection:	Pour la protection contre la corrosion
Dimensions de la plateforme (Lxl):	350 millimètres X 350 millimètres	Connectivité:	Analogue
Câble:	10 pieds (3 m)
Mettre en évidence:	MT1022 load cell sensor 20kg , industrial scale load cell , digital scale load cell with warranty

Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales

Key Features

High-performance single point load cell with off-center compensation
Metrology approvals including OIML and NTEP III 5,000d
Reliable strain gauge technology for long-term durability
ATEX Zone 1/21/2/22 approvals for hazardous areas
IP67 protection rating for harsh environments

Product Description

The MT1022 compression weigh module is designed for industrial weighing applications. Its top plate and base plate compress when weight is applied, allowing direct attachment to ground, piers, or structural beams. Ideal for platform scales, tank weighing, and silo applications, this load cell offers capacities from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66 lb (30 kg)
Material	Aluminum, passivated
Material No	72208512
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	10 ft (3 m) PVC

Applications

This compression load cell is specifically designed for small platform applications in industrial and digital scales. Its robust construction and high accuracy make it suitable for:

Industrial platform scales
Truck and railroad track scales
Tank, hopper, and silo weighing systems
Hazardous area applications
