Name: 110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Module de pesage SWB405 220kg 5m SS
Availability: InStock

Aperçu Produits

110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Mettler Toledo
Numéro de modèle:	Module de pesage SWB405 220kg 5m SS

Conditions de paiement et expédition:

Quantité de commande min:	1 série
Prix:	Négociable
Détails d'emballage:	Boîte à carottes
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 ensembles par mois

Contact

Description de produit détaillée

Produit:	Cellule de pesée Mettler Toledo	Capacité maximale:	250 livres (110 kg)
Matériel:	acier au carbone enduit de poudre	métrologie:	Le nombre de personnes concernées par le programme est fixé par la Commission.
Cellule de charge:	SLB415	Précision:	Standard
Classement de protection:	IP68, NEMA 6	Environnement / Matériel:	Acier au carbone
Une approbation dangereuse:	ATEX, FM	La critique:	La norme
Les câbles:	5 m
Mettre en évidence:	110kg carbon steel load cell , SWB405 weighing module with cable , platform scale load cell sensor

110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales

Product Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	250 lb (110 kg)
Material	Powder Coated Carbon Steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Accuracy	Standard
Protection Rating	IP68, NEMA 6
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	5 m

Product Description

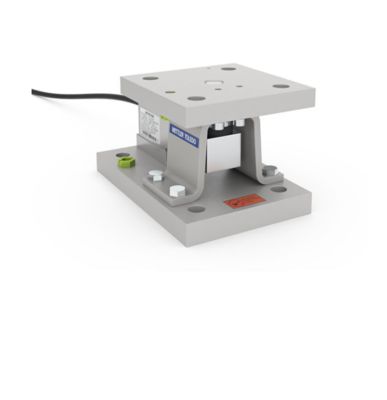

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Key Features

All Safety on Board: Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.
Easy Integration: SafeLock™ feature is built into SWB405 MultiMount™ weigh modules to make installation easier with all components locked in ideal initial positions.
Reliable Weighing: The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.

Technical Specifications

Material	Powder Coated Carbon Steel
Material No	30801027
Maximum Capacity	250 lb (110 kg)
Protection Rating	IP68 NEMA 6
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX FM
Load Cell	SLB415
Accuracy	Standard
Metrology	OIML C3, NTEP III 5M
