Name: SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Module de pesage SWC615 PM CS 90T S3A
Availability: InStock

Aperçu Produits

SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Mettler Toledo
Numéro de modèle:	Module de pesage SWC615 PM CS 90T S3A

Conditions de paiement et expédition:

Quantité de commande min:	1 SET
Prix:	Négociable
Détails d'emballage:	Boîte à carottes
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 réglé par mois

Contact

Description de produit détaillée

Produit:	Cellule de charge Mettler Toledo	Capacité maximale:	198,000 lb (90.000 kg)
le matériel:	Acier galvanisé	métrologie:	Le montant de l'allocation est calculé en fonction de l'expérience acquise.
Cellule de charge:	POWERCELL PDX	Précision:	standard
Classement de protection:	IP68/69k	Environnement / Matériel:	Acier au carbone
Une approbation dangereuse:	Zone ATEX 2 / 22 UL Division 2	La critique:	Surveillance des conditions
Mettre en évidence:	Carbon Steel PM load cell , 90T capacity load cell , S3A accuracy load cell

SWC615 Carbon Steel PM Type Load Cell Module with 90T Capacity S3A Accuracy Grade

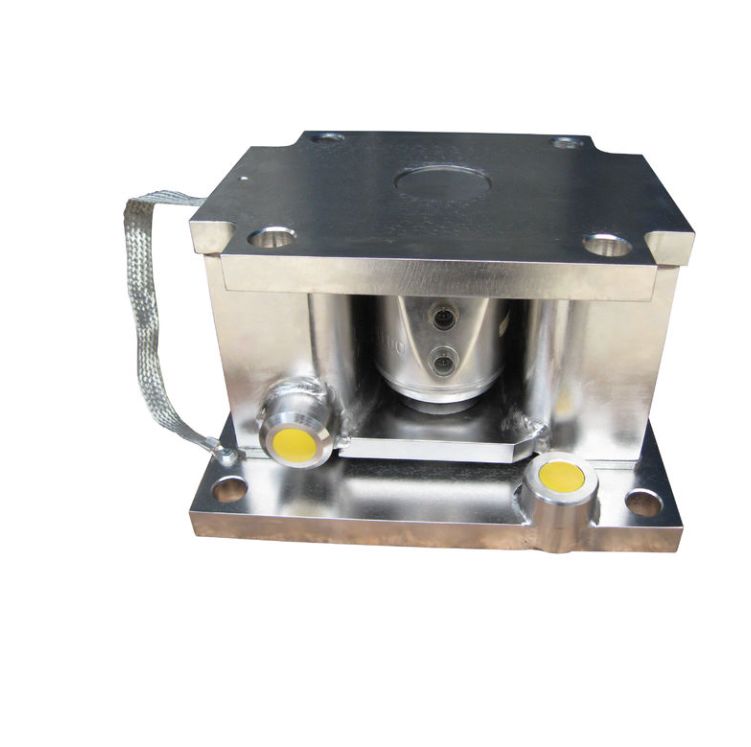

High-Performance Compression Weigh Module

A robust compression weigh module designed for industrial applications where its top plate and base plate compress under load. Engineered for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems with capacities ranging from 3 kg to 300 tons.

Key Features

Multi-purpose Application: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell protection
Predictive Diagnostics: Monitors load cells for overload, temperature changes, breach detection, and zero drift to prevent system failures

Technical Specifications

Material	Zinc plated steel (Material No: 30057238)
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology	OIML C3, NTEP IIIL 10,000, OIML C4
