Name: Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Module de pesage SWC615 PM SS 90T S3A
Availability: InStock

Aperçu Produits

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Mettler Toledo
Numéro de modèle:	Module de pesage SWC615 PM SS 90T S3A

Conditions de paiement et expédition:

Quantité de commande min:	1 SET
Prix:	Négociable
Détails d'emballage:	Boîte à carottes
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 réglé par mois

Contact

Description de produit détaillée

Produit:	Cellule de charge Mettler Toledo	Capacité maximale:	198,000 lb (90.000 kg)
le matériel:	Acier inoxydable, grade 304	métrologie:	OIML C3, NTEP IIIL 10 000
Cellule de charge:	POWERCELL PDX	Précision:	standard
Classement de protection:	IP68/69k	Environnement / Matériel:	Nettoyage à l'eau / Acier inoxydable
Une approbation dangereuse:	Zone ATEX 2 / 22 UL Division 2	La critique:	Surveillance des conditions
Mettre en évidence:	90 ton heavy-duty load cell , SWC615 PM S3A load cell , stainless steel load cell module

Heavy-Duty SWC615 PM S3A Certified Load Cell Module with 90 Ton SS Construction

Product Overview

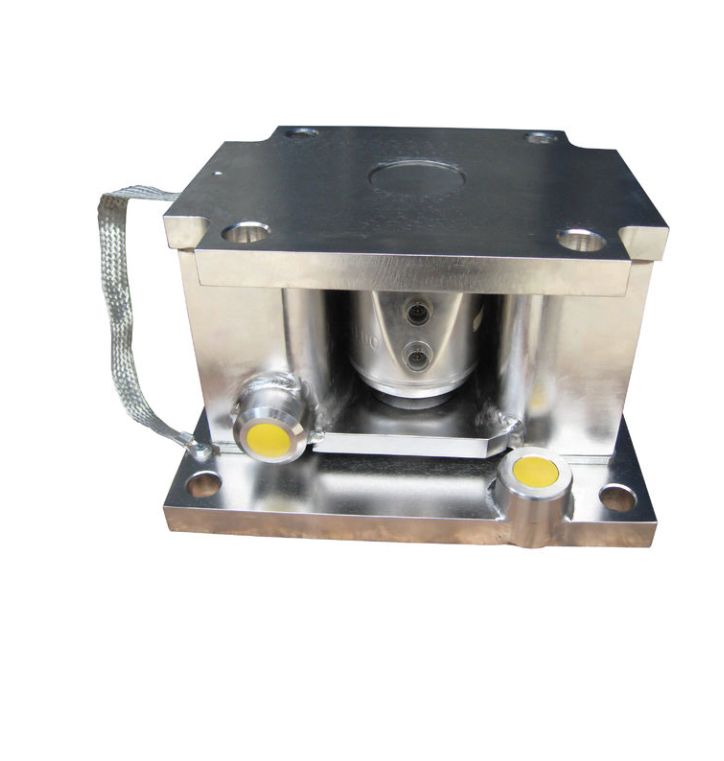

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Application

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high-accuracy, fully approved stainless hermetic load cell for all industrial applications.

Enhanced Safety & Protection

Includes 360° self-checking, dual lift-off & down-stops, ground strap, hazardous area approvals, and IP68-rated stainless steel load cell for maximum reliability.

Predictive Diagnostics

Monitors individual load cells for overload conditions, temperature fluctuations, breach detection, and zero drift to prevent system failures and measurement errors.

Technical Specifications

Material	Stainless steel, grade 304
Material Number	30057237
Maximum Capacity	198,000 lb (90,000 kg)
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX Zone 2/22, UL Division 2
Load Cell	POWERCELL PDX
Accuracy	Standard
Metrology Certification	OIML C3, NTEP IIIL 10,000
