Name: 1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Module de pesage SWB505 SS 10kg
Availability: InStock

Aperçu Produits

1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Mettler Toledo
Numéro de modèle:	Module de pesage SWB505 SS 10kg

Conditions de paiement et expédition:

Quantité de commande min:	1 SET
Prix:	Négociable
Détails d'emballage:	Boîte à carottes
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 réglé par mois

Contact

Description de produit détaillée

Produit:	Cellule de charge Mettler Toledo	Capacité maximale:	2 500 lb (1 100 kg)
le matériel:	Acier galvanisé	métrologie:	Le nombre de personnes concernées par le programme est fixé par la Commission.
Précision:	standard	Classement de protection:	IP68/69k
Environnement / Matériel:	Acier au carbone	Une approbation dangereuse:	ATEX Cat. 3GD FM Division 2
La critique:	Surveillance des conditions
Mettre en évidence:	1.1t carbon steel weigh module , SWB605 precision weigh module , EN1090 approved load cell

1.1t SWB605 Carbon Steel Weigh Module with C3 Precision EN1090 Approved Design

Economic System Integration

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.

Product Description

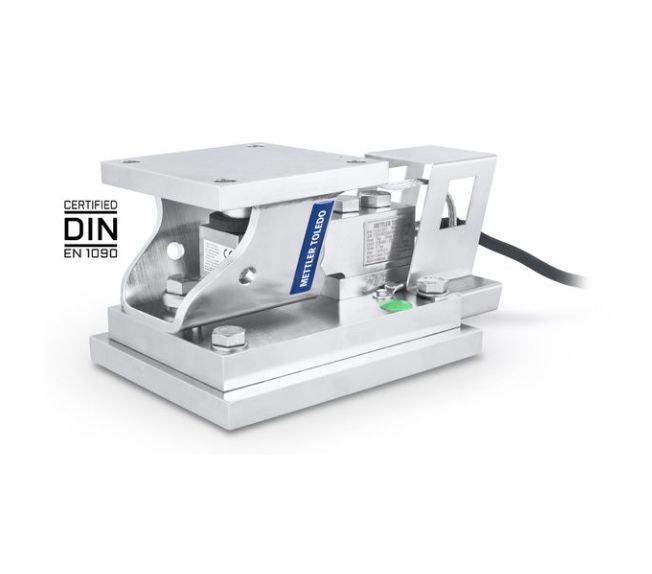

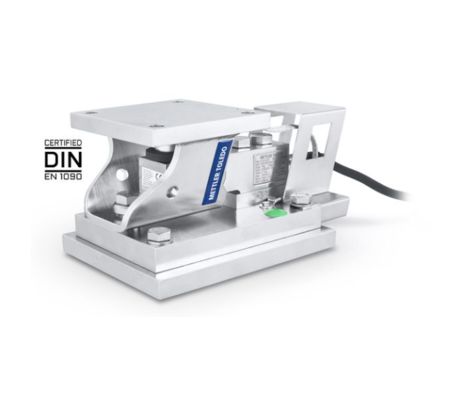

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing.

Key Features

Static & Dynamic Weighing: Highest accuracy for both application types with self-aligning rocker pin
Safety & Protection: 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell
Easy Installation: Pre-aligned for installation with minimal lift required for load cell removal

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	2,500 lb (1,100 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP III 5M
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX Cat. 3GD FM Division 2
Criticality	Condition monitoring
