Name: SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Module de pesage SWB505 SS 10kg
Availability: InStock

Aperçu Produits

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor Industrial Grade

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Mettler Toledo
Numéro de modèle:	Module de pesage SWB505 SS 10kg

Conditions de paiement et expédition:

Quantité de commande min:	1 SET
Prix:	Négociable
Détails d'emballage:	Boîte à carottes
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 réglé par mois

Contact

Description de produit détaillée

Produit:	Cellule de charge Mettler Toledo	Capacité maximale:	10 kg (22 lb)
le matériel:	Acier inoxydable V2A (AISI 304)	métrologie:	NTEP III 5M OIML C3
Cellule de charge:	VTT, câble de 3 m	Précision:	standard
Classement de protection:	IP68/69k	Environnement / Matériel:	Nettoyage à l'eau / Acier inoxydable
Une approbation dangereuse:	ATEX, FM, cFM	La critique:	standard
Mettre en évidence:	10kg precision load cell , industrial grade weighing sensor , SS load cell module

SWB505 SS Load Cell Module with 10kg Precision Weighing Sensor - Industrial Grade

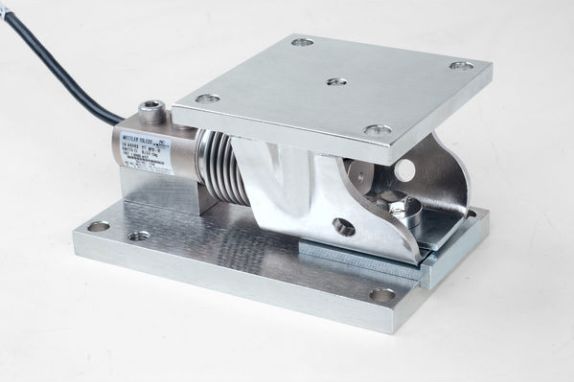

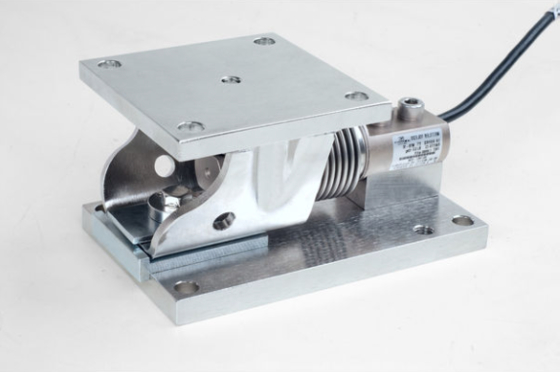

Economic System Integration - Weigh Module SWB505 MultiMount Stainless Steel 10kg/22lb

Static & Dynamic Weighing

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.

Safety & Protection

Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell for peace of mind.

Ease of Installation/Service

Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.

Product Description

A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing. Capacities range from 3 kg to 300 tons.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	22 lb (10 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	NTEP III 5M OIML C3
Load Cell	MTB, 3 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
