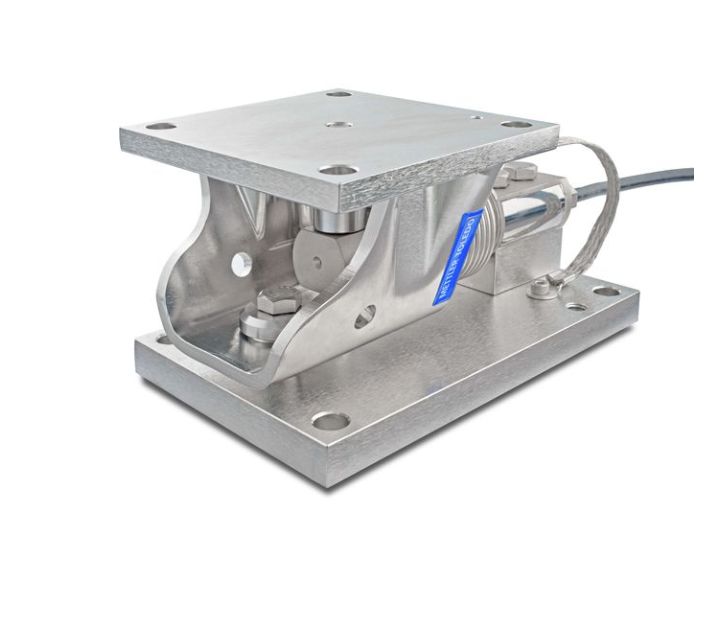

Name: SWB505 CS 50kg Load Cell Module – C6 Certified Weighing Sensor for Industrial Use
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Module de pesée SWB505 CS 50 kg C6
Availability: InStock

Aperçu Produits

SWB505 CS 50kg Load Cell Module – C6 Certified Weighing Sensor for Industrial Use

Détails sur le produit:

Lieu d'origine:	La Chine
Nom de marque:	Mettler Toledo
Numéro de modèle:	Module de pesée SWB505 CS 50 kg C6

Conditions de paiement et expédition:

Quantité de commande min:	1 SET
Prix:	Négociable
Détails d'emballage:	Boîte à carottes
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 réglé par mois

Contact

Description de produit détaillée

Produit:	Indicateur Mettler Toledo	Capacité maximale:	50 kg (110 lb)
Matériau:	Acier galvanisé	métrologie:	OIML C6, NTEP IIIL 10,000
Cellule de charge:	VTT, câble de 3 m	Précision:	Élevée
Classement de protection:	IP68， IP69k	Environnement / Matériau:	Normal / Acier au carbone
Une approbation dangereuse:	ATEX, FM, cFM	Criticité:	standard
Les câbles:	3M
Mettre en évidence:	50kg load cell module , C6 certified weighing sensor , industrial load cell sensor

SWB505 CS 50kg Load Cell Module – C6 Certified Weighing Sensor for Industrial Use

Attribute	Value
Product	Mettler Toledo Indicator
Maximum Capacity	110 lb (50 kg)
Material	Zinc plated steel
Metrology	OIML C6, NTEP IIIL 10,000
Load Cell	MTB, 3 m cable
Accuracy	High
Protection Rating	IP68, IP69k
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM, cFM
Criticality	Standard
Cable	3 m

Economic System Integration - Weigh Module SWB505 MultiMount Carbon Steel 50kg/110lb C6

Static & Dynamic Weighing

Multi-purpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.

Safety & Protection

Features include 360° checking, built-in anti-uplift and down stops, hazardous-area approvals and IP68 stainless-steel load cell.

Ease of Installation/Service

Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.

Specifications

Material No: 30219964

Material: Zinc plated steel

Maximum Capacity: 110 lb (50 kg)

Load Cell Type: MTB, 3 m cable

Protection Rating: IP68/69k

Accuracy: High

Environment / Material: Normal / Carbon Steel

Hazardous Approval:

ATEX
FM
cFM

Criticality: Standard

Cable: 3 m
