Name: Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Module de pesage SWC615-A SS 20t
Availability: InStock

Aperçu Produits

Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Mettler Toledo
Numéro de modèle:	Module de pesage SWC615-A SS 20t

Conditions de paiement et expédition:

Quantité de commande min:	1 SET
Prix:	Négociable
Détails d'emballage:	Boîte de Caron
Délai de livraison:	10 à 30 jours
Capacité d'approvisionnement:	2000 réglé par mois

Contact

Description de produit détaillée

Produit:	Cellule de charge Mettler Toledo	Capacité maximale:	110 000 livres (50 000 kg)
Matériel:	Acier inoxydable V2A (AISI 304)	métrologie:	OIML C3, NTEP IIIL 10 000
Cellule de charge:	POWERCELL PDX	Précision:	standard
Classement de protection:	IP68/69k	Environnement / Matériel:	Nettoyage à l'eau / Acier inoxydable
Une approbation dangereuse:	ATEX, FM	La critique:	Surveillance des conditions
Mettre en évidence:	Stainless steel weigh module 20t , Industrial load cell sensor , Mettler Toledo load cell with warranty

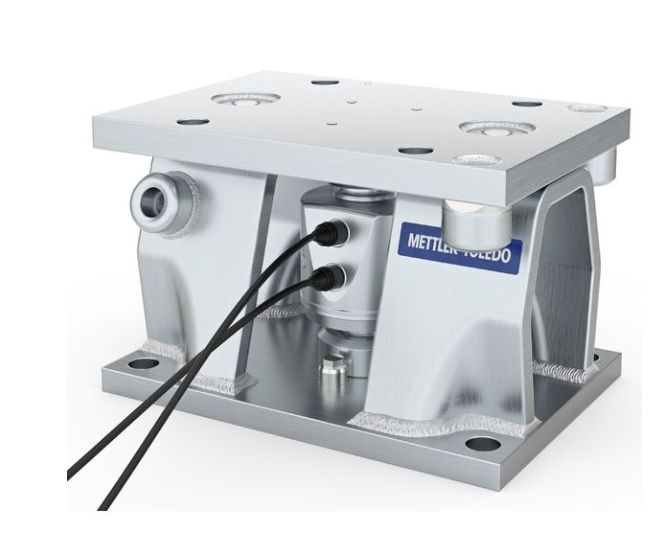

Stainless Steel SWC615-A Weigh Module 20t – Industrial Load Cell Sensor

Product Overview

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.

Key Features

Multi-Purpose Design

Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high accuracy, fully approved stainless hermetic load cell for all applications.

Enhanced Safety

Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals, and IP68 load cells for maximum reliability.

Condition Monitoring

Monitor individual load cells for overload, temperature, zero drift, and other parameters to prevent system shutdowns or measurement errors.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Stainless Steel V2A (AISI 304)
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down/Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
